Daniel flow measurement and control instruments are custody transfer grade with high accuracy, repeatability, and quality. Products include liquid turbine meters, differential pressure flow products, and piston control valves.

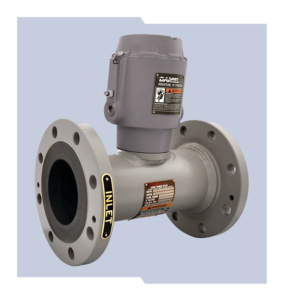

Custody transfer turbine meter for measuring crude and refined petroleum products. High accuracy up to 0.07% linearity. Available for 1″ to 24″ line size. Flow capacity up to 10,970 m3/hr. Standard two pickoffs and dual channel preamp, optional four pickoffs and two dual channel preamps. CRN registration and UL/cUL class 1 Divsion 1, groups B, C and D approval.
Daniel offers a large collection of differential pressure fittings and plates. The Senior Orifice meter has a high accuracy meeting AGA 3 and API 14.3. The design allows for fast and easy removal of the orifice plate without shutting down your line.
